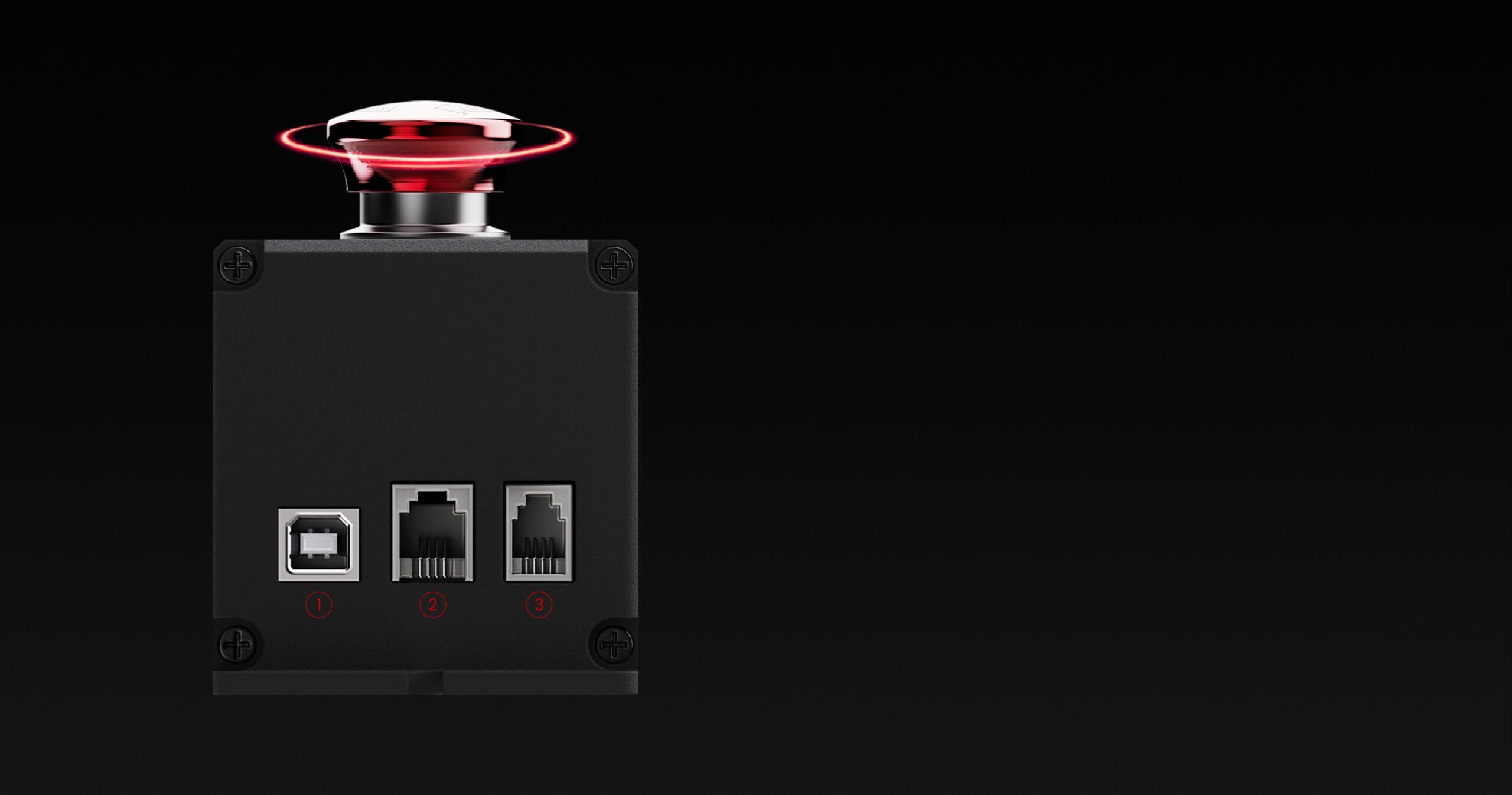

Choose from three connection and protection modes:
Mode 1:
Connect the MOZA E-stop Switch directly to the PC via a USB cable. Pressing the switch only deactivates the force feedback, which is immediately restored upon release.
Mode 2:
Connect the MOZA E-stop Switch to the DASH on the base using an RJ11 cable (6 contact pins). Pressing the switch only deactivates the force feedback, which is immediately restored upon release.
Mode 3:
Connect the MOZA E-stop Switch to the E-STOP port on the base using an RJ9 cable (4 contact pins). Pressing the switch completely cuts off power, and after release, the base needs to be powered on again by pressing the power button on the base. Some games may require restarting to restore force feedback.
