R9 V3 and FSR2 Bundle

Name: R9 V3 and FSR2 Bundle
Brand: MOZA Racing
SKU: R9 V3 and FSR2 Bundle
Price: 968.00 USD
Availability: InStock

$968.00 $998.00

Shipping calculated at checkout.

The MOZA R9 V3 Direct Drive Wheel Base delivers an impressive 9Nm torque through its high-performance servo motor and 21-bit magnetic encoder, providing ultra-precise and smooth force feedback. Paired with the 280mm FSR2 Formula Wheel featuring a 4.3-inch touchscreen and multi-functional controls, this bundle offers an immersive racing simulation experience. Fully customizable via MOZA Pit House software and compatible with a wide range of popular racing titles, it’s engineered for serious sim racers seeking ultimate control and realism.

Learn more about the individual products:

Product variants

Upgrade to the Full MOZA Experience

Table Clamp

$49.00

MOZA Universal Hub Kit

$39.00 $59.00

MOZA CRP2 Load Cell Pedals (Throttle+Brake)

$399.00

Performance Kit for CRP2

$19.90

MOZA SGP Sequential Shifter

$129.00

Handbrake / Shifter Table Clamp

$29.00

Dispatched within 3 business days.

Global Support

Enjoy Worry-Free Use

Worldwide Shipping & Returns

Pairs well with

R9 V3 and FSR2 Bundle

Dispatched within 3 business days.

$968.00

SPECS

MOZA R9 V3 DD Base

Platform: PC
FFB Drive System: Direct Drive
Max Wheel Rotation: Limitless
Peak Torque: 9 N·m
Peak Power: 180W
Input Voltage: 110V~220V AC → 36V DC
USB Refresh Rate: 1000Hz
Wheel Base Indicator Light: Supported
App Functionality: Supported (MOZA Pit House & MOZA Mobile App)
Quick Release: MOZA Quick Release
Connection Ports: Power, DC Input, Pedals, E-stop, USB, Dash, Shifter, Handbrake
Firmware Updating: Applicable
Temperature Control System: Intelligent Temperature Monitoring & Active Cooling
Encoder: 21-bit Magnetic Encoder (2,097,152 steps per revolution)
Motor Type: High-performance Servo Motor (18-Slot / 16-Pole Configuration)
Housing Material: Aviation Grade Aluminum Alloy
Color: Black
Mounting: 4-hole bottom mount; optional table clamp and side mounting supported
Table Clamp: Optional
Side Mounting: Optional
Emergency Stop Switch: Optional
Size (L x W x H):240 × 157 × 124 mm
Accessories: User Manual, Warranty Card, Power Supply, USB Cable, Toolkit

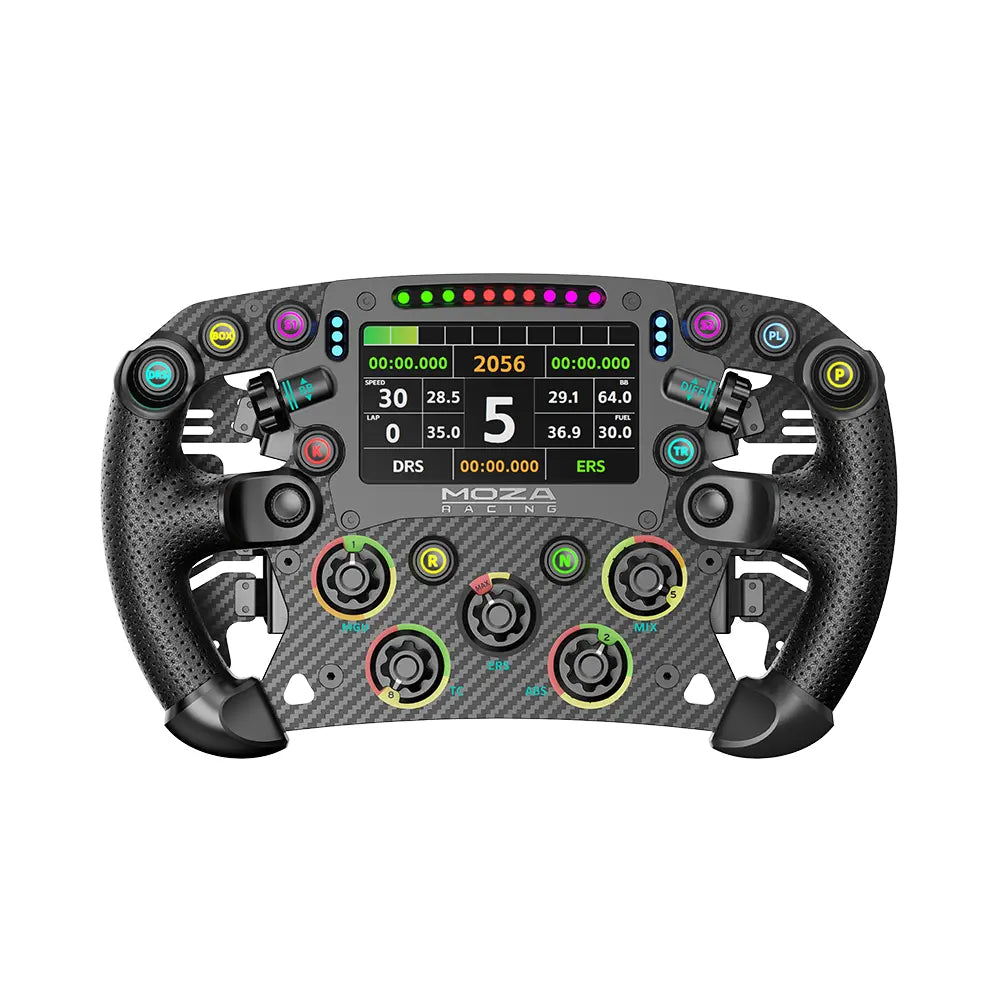

FSR2 Formula Wheel

Size: 280mm formula-style steering wheel
Back Plate Material: Aerospace-grade aluminum alloy
Face Plate Material:5mm-thick 3K twill carbon fiber
Grip Material: Perforated microfiber leather
Display Screen: 4.3-inch touchscreen display
Display UI: Fully customizable
Short-Travel Backlit Buttons: 10
Backlit Color Options for Buttons: 16.7 million colors
Rotary Encoders: 2
Thumb Encoders: 3
7-Way Switches: 2
Signal Lights: 6 LED side-mounted signal lights
Shift Indicator Lights: 10 LED top-mounted shift indicator lights
Adjustable Colors for Shift Lights, Signal Lights, and Button Lights: 16.7 million colors
Shift Paddles: Hall sensor magnetic carbon fiber paddles
Dual Clutch Paddles: Hall sensor magnetic carbon fiber paddles
Smart Telemetry: Supported
Fully Adjustable RPM LEDs through MOZA Pit House: Supported
Release Method: All-aluminum quick release
Communication Methods: Wireless or via conductive slip ring
Compatibility: Compatible with all MOZA wheelbases; works with 3rd party wheelbases via MOZA hub

User Manual

MOZA FSR2 Formula Wheel User Manual >

MOZA R9 DD Wheelbase User Manual >

WHAT'S INBOX

FSR2 Formula Wheel * 1
R9 V3 DD Base * 1
Adapter
USB Cable
Toolkit
User Manual
Warranty Card
MOZA Sticker

FAQs

Still have questions? Get help from a MOZA expert.

Which platforms and games are supported by the R9 V3 and FSR2 bundle?

The bundle is designed for PC platforms and supports major racing simulators including Assetto Corsa, Forza Horizon series, iRacing, F1 series, Project CARS, and more, ensuring wide compatibility.

How realistic is the force feedback on the R9 V3?

Equipped with a 9Nm direct drive servo motor and a 21-bit magnetic encoder, combined with the NexGen 4.0 force feedback algorithm, the R9 V3 delivers exceptionally smooth, precise, and detailed force feedback that accurately simulates real driving sensations.

What advantages does the FSR2’s touchscreen and controls offer?

The FSR2 features a 4.3-inch high-definition touchscreen for intuitive UI navigation and quick access to multiple dashboard layouts. It also includes 10 backlit buttons, rotary encoders, and 6 RGB signal lights for enhanced control during racing.

How easy is it to install and integrate this bundle with existing rigs?

The R9 V3 features a standard 4-hole bottom mount compatible with most racing rigs and floor stands. The FSR2 uses a quick-release system for easy attachment and removal. Full installation instructions and customer support are provided.

What warranty does MOZA offer for the R9 V3 and FSR2 bundle?

MOZA Racing provides a 2-year warranty for the main body of the R9 V3 Direct Drive Wheel Base, and a 1-year warranty for the FSR2 Formula Steering Wheel, covering defects in materials and workmanship. Please note that accessories are not covered under warranty. This warranty applies exclusively to purchases made through MOZA’s official channels and authorized distributors. For more details, please refer to our Warranty Policy.
